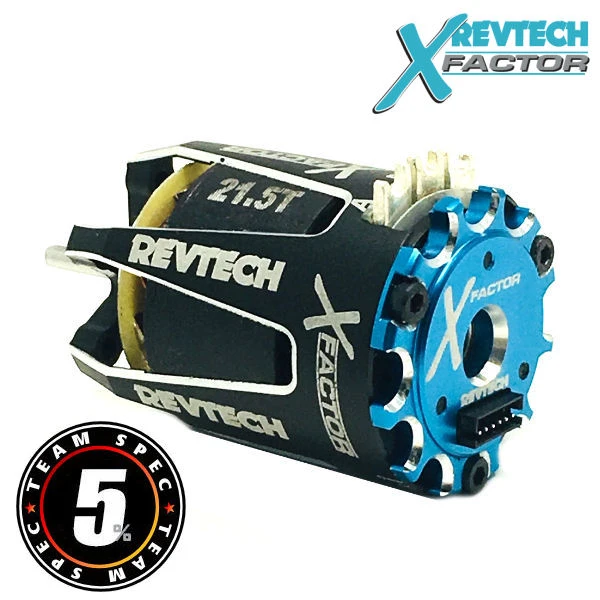

Trinity Revtech X Factor Team Spec 21.5T Brushless Motor

FEATURES:

• 10% Lighter than Previous Motors
• Weight (144g avg)
• New Composite Sensor Board
• 0 – 60 Degrees of Timing adjustment
• Revolutionary timing ring & locking end plate systems saves weight Only 6 short screws (no long screws)
• X-Flow Cooling which pulls more air through the can, reducing motor temps
• 2pc CNC Machined Aluminum can allows for more accurate deviation readings
• 2mm Ultra Low Resistance Solder Tabs
• New Stator Design provides a more efficient power curve NO FADE!
• 1630Kv this number is approximate set as Zero Degrees of Timing. Sensored Brushless Motors are not rated in Kv’s due to the fact that timing and voltage can effect the Kv number.
• 12.5 x 25.5mm Long
• High Torque Rotor – Copper
• Production Base Motor
• Thorough visual inspection for any issues including shimming and loose screws
• Each and every production Motor Stator is tested and only the TOP 5% are labeled as Team SPEC 5%
